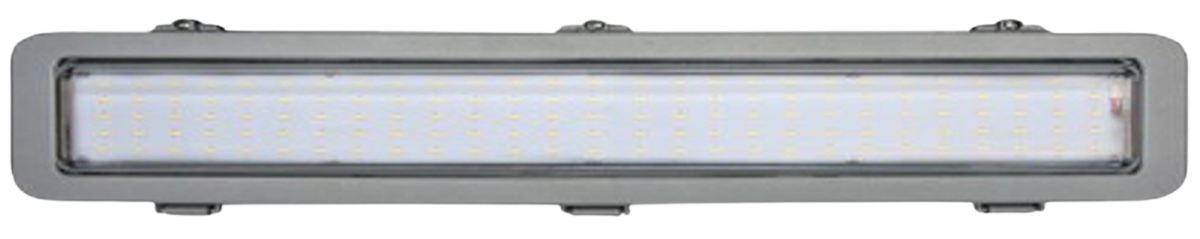

48" Linear LED Die Cast C1D2 Hazardous Location Fixture

Product Description

The 48" Linear LED Die Cast C1D2 Hazardous Location Fixture luminaire is available with clear or LumaLens lenses and open door frame designed to replace HID lighting systems up to 400w MH or HPS.

The typical commercial applications for this product include:

• Industrial facilities

• Oil, gas, and painting facilities

• Auto service facilities

• Oil rigs

• Oil foundries

• Fuel stations

 Mounting heights of 18 to 30 feet can be used based on light level and uniformity requirements.

Specifications and Features

Housing

Heavy-Duty Die-Cast Aluminum Housing and Top Frame. Can Be Tapped for Side Conduit Entry.

Listing & Ratings

ETL Listed for Hazardous Locations Per UL844 as Follows: Class 1, Division 2 Groups A, B, C, D; T4 Temperature Rating Suitable for Wet Locations, IP66 Sealed LED Compartment

Finish

Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens

Clear Polycarbonate Vandal-Resistant Lens or LumaLens Opal Polycarbonate VandalResistant Lens

Mounting Options

Surface Mount or Use Optional Stainless Steel Quick-Mount Bracket, Adjustable Bracket, or Yoke.

EES LED Engine

Aluminum Metal Core Boards

Wattage

112 Watt: Array: 112w, System: 126w (250w HID Equivalent) 136 Watt: Array: 136w, System: 152w (400w HID Equivalent)

Driver

Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Warranty

5-Year Warranty for -40°C to +50°C Environment.
